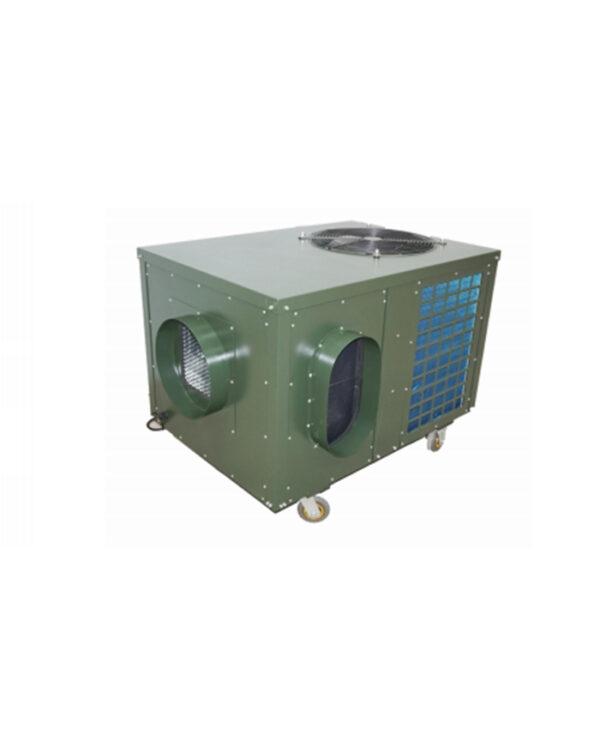

Left Condenser and Right Evaporator Design

Left Condenser and Right Evaporator Design

Features

Easy installing, just connect the flexible duct to the ac and the tent,then connect the power, then tent air conditioner can start to work;

Quick installing, one person just one minute can finish the install.

The AC is built into a cabinet manufactured from 1mm galvanized and powder coated steel sheet;

Top finish painting is standard Olive green, also painting according customer needs;

Can provide cooling at ambient temperature up to +55℃, provide heating at ambient temperature at -10℃;

Environment-friendly R410a refrigerant gas;

High/low pressure prostate switch ensuring long compressor lifetime;

Emerson or Danfoss expansion valve can make the ac adjust itself with the environment better;

Connect to the mains power supply or a separate diesel generator through a 7.5 m power cable;

Temperature control by a room thermostat placed inside the tent;

Inlet and discharge openings for one Ø380 mm insulated flexible hose, thus allowing the air conditioning unit itself to be set up outside;

Easy transportation, have four wheels in the bottom, can easy move on the ground.

Description

 Model No.   WXAC-07HCWa WXAC-12HCWaS WXAC-18HCWaS
 Cooling Capacity KW/BTU 7KW/3HP 12KW/5HP 18KW/7HP
 Heating Capacity KW/BTU 7KW/3HP 12KW/5HP 18KW/7HP
 Applicable Tent Area 12~18m2 20~30m2 30~45m2
 Electric Source   1PH~220V/50Hz 3PH~380V/50Hz 3PH~380V/50Hz
 Rated Power Input W 2900W 5500W 7000W
W 3200W 5850W 8500W
 Rated Current Input A 15.1A 9.1A 11.7A
A 15.5A 9.5A 13.2A
 Air Flow Volume

(m3/h)

Indoor Side 1500m3/h 2000m3/h 3000m3/h
Outdoor Side 3500m3/h 5000m3/h 10000m3/h
 Air Pressure (Pa) Indoor Side 200 200 200
 Compressor Model No.   GMCC Panasonic Panasonic
 Cooling Temp Range 20℃ to 55℃ 20℃ to 55℃ 20℃ to 55℃
 Heat Pump Tep Range -10℃ to 20℃ -10℃ to 20℃ -10℃ to 20℃
 Electricity Heat Range -45℃ to 20℃ -45℃ to 20℃ -45℃ to 20℃
 Refrigerant / Charge KG R410A/1.9kg R410A/3.0kg R410A/6.0kg
 Noise dB(A) Indoor Side ≤40 dB(A) ≤45 dB(A) ≤48 dB(A)
Outdoor Side ≤55 dB(A) ≤60 dB(A) ≤65 dB(A)
 Gross /Net Weight kg 165kg/125kg 240kg/180kg 310kg/250kg
 Net Dim. (L x W x H) mm 1051×790×870 1282*932*940 1460×990×1035
 Packing Dim (L x W x H) mm 1090x840x1040 1345*1000*1105 1550*1040*1200
